Liquid Oxygen Storage tank

Liquid Oxygen Storage tank

Product Description

cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel, the outer material useing Q245R, carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure, low issuance date ,small footprint, centralized control, safe, reliable, easy operation and maintenance.

Product Parameters

Model	Working Medium	Volume(M3)	Weight(kg)	Size(mm)	Working Pressure(MPa)
CFL-5/0.8	liquid oxygen liquid argon liquid nitrogen	5	3412	Φ2000*5130	0.8
CFL-10/0.8		10	5378	Φ2100*7170
CFL-15/0.8		15	6415	Φ2500*6912
CFL-20/0.8		20	8673	Φ3000*6100
CFL-30/0.8		30	12899	Φ2900*8870
CFL-50/0.8		50	18960	Φ3100*12058
CFL-100/0.8		100	34480	Φ3600*15947
CFL-150/0.8		150	53500	Φ3600*23000
CFL-200/0.8		200	65500	Φ3924*26000
CFL-5/1.6	liquid oxygen liquid argon liquid nitrogen	5	3945	Φ2000*5130	1.6
CFL-10/1.6		10	6787	Φ2000*7895
CFL-15/1.6		15	8628	Φ2400*7552
CFL-20/1.6		20	10744	Φ2400*9371
CFL-25/1.6		25	13500	Φ2700*8980
CFL-30/1.6		30	14640	Φ2700*10310
CFL-40/1.6		40	19884	Φ3100*9985
CFL-50/1.6		50	23370	Φ3100*12058
CFL-100/1.6		100	44050	Φ3400*17930

Advantage

1.Compact structure

2.Low daily evaporation rate

3.Small footprint

4.Centralized control

5.Safe and reliable

6.Easy to operate and maintain

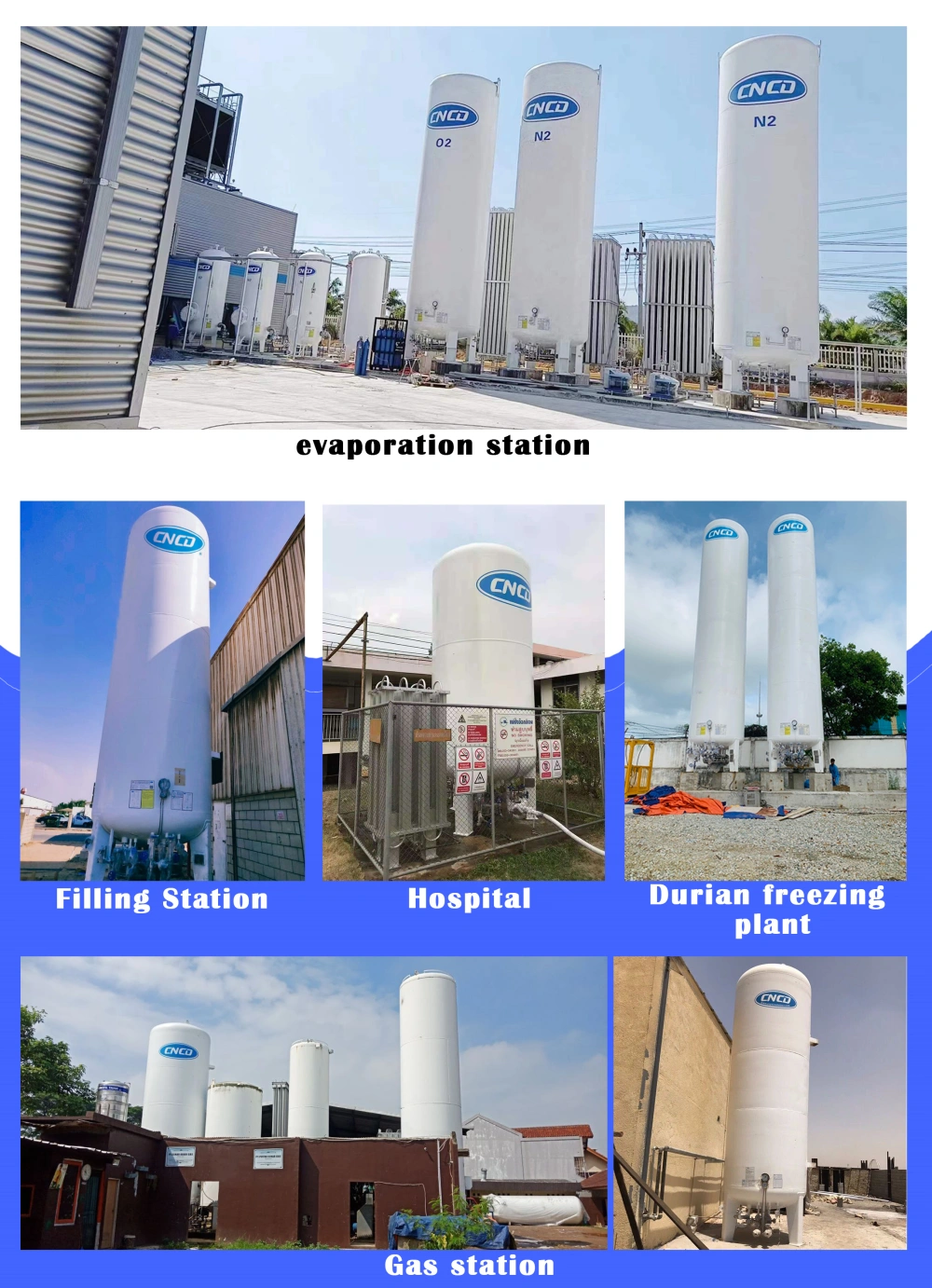

Project sites
