T75 Liquid Oxygen ISO Tank

T75 Liquid Oxygen ISO Tank Container

Product description

The Tank Container International Standard Tank is a stainless steel pressure vessel that is mounted in a secured outer frame. Most of the tank body is made of 316 stainless steel. Most tanks have steam or electric heating, inert gas protection, pressure relief and other optional equipment for fluid handling and handling.

Technical Parameter

Key Structural Features:

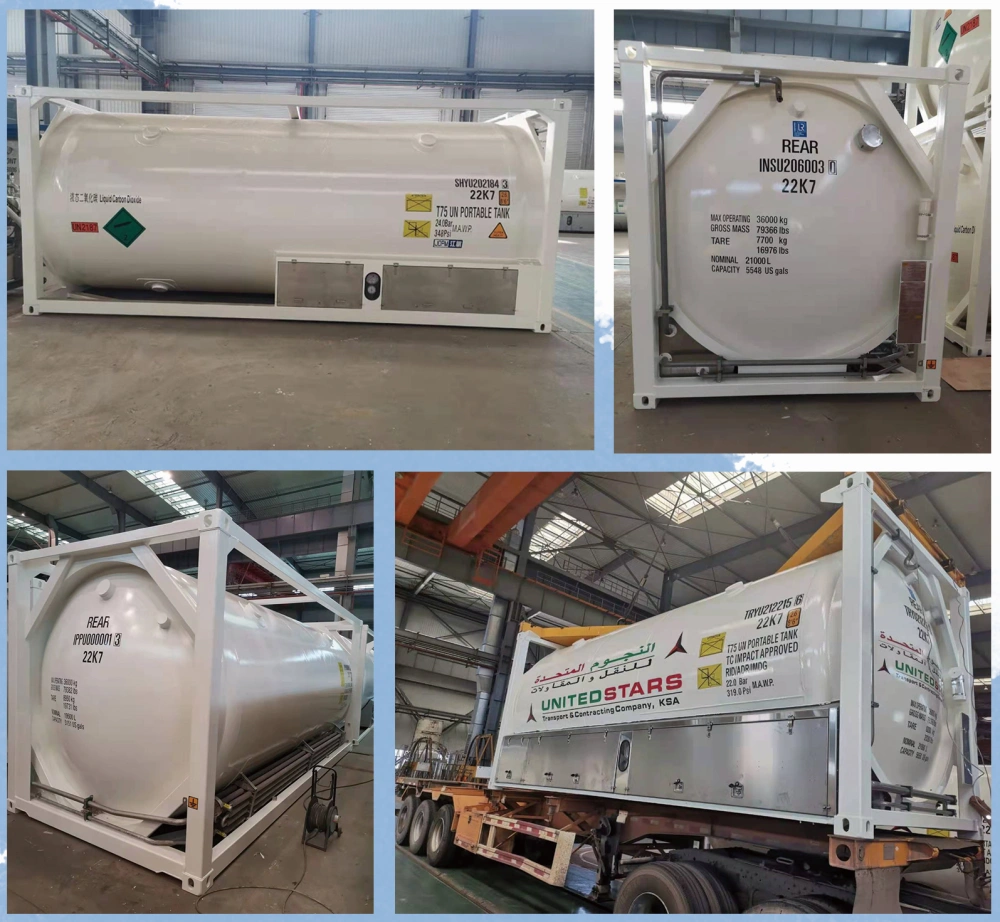

External Frame: Standard 20-foot container dimensions (length x width x height: approximately 6.058m x 2.438m x 2.438m) with corner fittings, allowing seamless integration with all standard transport equipment, including container ships, trucks, and railroad flatbeds.

Inner Tank: Typically made of stainless steel (such as 316L/304L), this container holds the cargo. Different cargoes require different liner materials and coatings.

Insulation: Many tank containers are equipped with polyurethane foam insulation, which acts like a thermos to maintain the temperature of the cargo within (either constant or low).

More details

Operating Components:

Manhole: Located on the tank roof for internal inspection, cleaning, and maintenance.

Discharge Valve: Located on the tank bottom for discharging cargo.

Inlet Valve: Located on the tank roof or side for filling cargo.

Safety Valve: Prevents excessive or low pressure within the tank.

Pressure Gauge/Thermometer: Monitors tank conditions.

Steam Recovery Valve: Used for connection to a steam recovery system.

Capacity: Typically ranges from 17,000 to 26,000 liters. Maximum operating pressure varies from vacuum to higher pressures (e.g., 4-6 bar), depending on the design.

Packing and Shipping

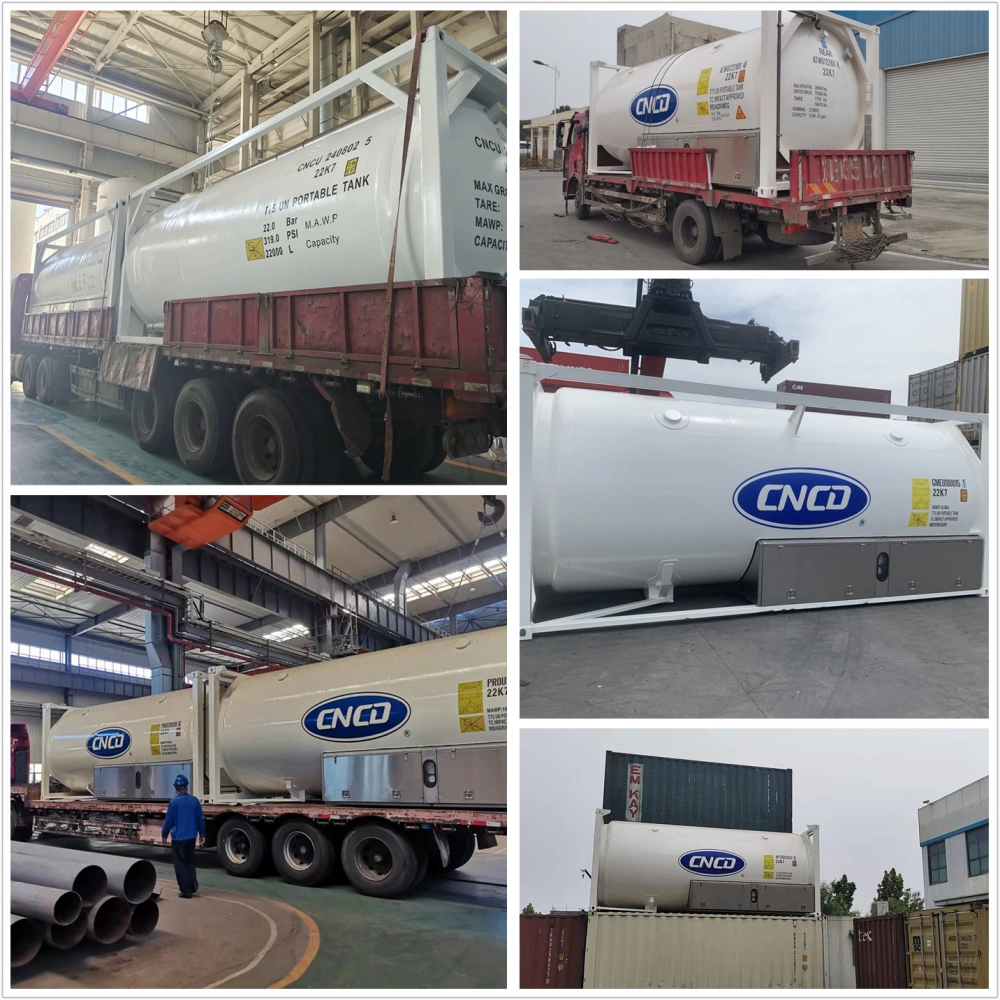

“Installation” here primarily refers to the process of loading the tank container onto a transport vehicle (truck, ship, train) and placing it on site.

Structural Integrity Check: Before lifting or hauling, carefully inspect the frame structure for deformation, cracks, or severe corrosion, especially at the corner fittings, to ensure it can withstand heavy loads.

Center of Gravity Balance: Due to its round shape, the tank container has a higher center of gravity than a typical dry container. Lifting and transportation must be stable to prevent tipping due to an unstable center of gravity.

Proper Operation of Spreaders/Chassis:

1.Use a spreader or chassis designed for containers.

2.Ensure that all twist locks are fully locked and securely in place with the tank container’s corner fittings.

3.On-Land Storage: If the tank container needs to be stored on site for an extended period, it should be securely supported using dedicated supports or skids to prevent direct loads on the tank valves or bottom.

4.Pre-Pipeline Verification: Before connecting the tank container to on-site pipelines, ensure that it is stable and cannot move.

FAQ

1. what can you buy from us?
We are a professional manufacturer of large perlite or vacuum multi-layered cryogenic liquid storage tank(LO2, LN2, LAr, LCO2 and LNG)，cryogenic heat-insulated gas cylinders, cryogenic pump,ambient air vaporizer,iso tank container ,simi trailer tank . Any interests you can feel to contact us for details. Thanks.

2. What is your production standard?
Our company has been able to design, manufacture and install pressure vessels with working pressure below 100bar,It also has a GC2 level pressure pipe installation certificate and ISO9001 quality certificate. Our production standards are based on GB standard.

3. What about warranty?
Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 18 months from the date on which the equipment has been delivered, whichever comes first.

4. How to order cryogenic liquid storage tank?
Please tell us know:
1. Storage capacity;20ft or 40ft
2. Working pressure;1.6mpa ,2.2mpa or customized
3. Storage medium(LO2, LN2, LAr, LCO2 or LNG);
4. Use: industrial production, food or other;
5. Form: full frame or half frame

5. How to package the goods at the time of delivery?
We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.
