Liquid Co2 Storage Tank

Release time:2025-08-20 Popularity:279

Liquid Co2 Storage Tank

Product Description

Cryogenic Liquid Co2 Storage Tank Is For Double Wall, The Inner Material Adopted 16MnDR Stainless Steel,The Outer Material Using Q245R,Carbon Steel. It Conclude Vertical And Horizontal Structure, Adopt The Use Of Vacuum Powder Adiabatic, With The Advantage Of Compact Structure , Low Issuance Date,Small Footprint,Centralized Control, Safe,Reliable, Easy Operation And Maintenance.

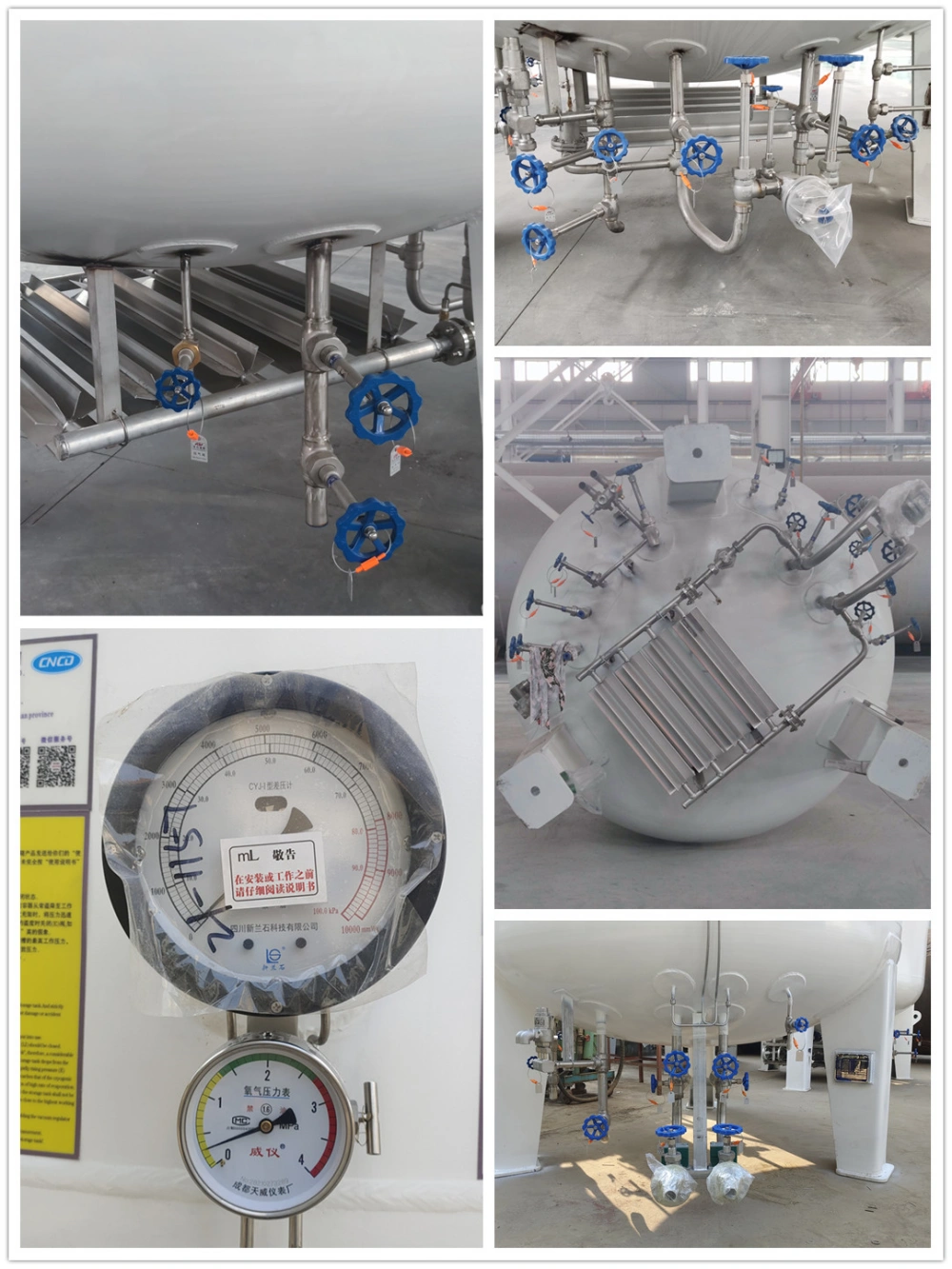

The Design Of The Shell And Support System Can Withstand The Relevant External Forces Produced During Manufacture, Transportation, Installation And Use. The Bottom Of The Cryogenic Tank Is Provided With a Complete Set Of Valves, Meters And Safety Devices For Operation.

More details

Specification

Model	Effective volume(M3)	Working pressure (Bar)	Dimension (mm)	weight (Kg)	Design Code
CFL-5/2.16	5	21.6	Φ2000*5130	4450	GB,CE,ASME
CFL-10/2.16	10		Φ2100*7170	6986
CFL-15/2.16	15		Φ2500*6912	8810
CFL-20/2.16	20		Φ2500*8756	11328
CFL-25/2.16	25		Φ2900*7728	14660
CFL-30/2.16	30		Φ2900*8875	17961
CFL-50/2.16	50		Φ3200*11320	26097
CFL-60/2.16	60		Φ3200*13180	30220
CFL-100/2.16	100		Φ3500*16870	49627

Structural features

1.Compact structure, cover a small area.
2.Storage tank and supercharger is a closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.
3.With the pressure adjusting device, the user according to the need to adjust the regulator T,You can discharge the required pressure of the liquid,pressure is stable, easy to operate.
4.Tank provided with a tanker filled joints, can shipping liquid to the vaporizers, tankers.
5.Insulation material perlite and sorbent of storage tanks have been special treatment, to make sure the storage tank have more longer vacuum life. At the same time the storage tank with Metal thermocouple regulation,you can measuring the interlining vacuum when needed.

Application

The products are widely used in Metallurgy, steel structure.automobile manufacturing and other modern agriculture,they have the advantage of compact structure, safe and reliable,convenient operation and maintenance.

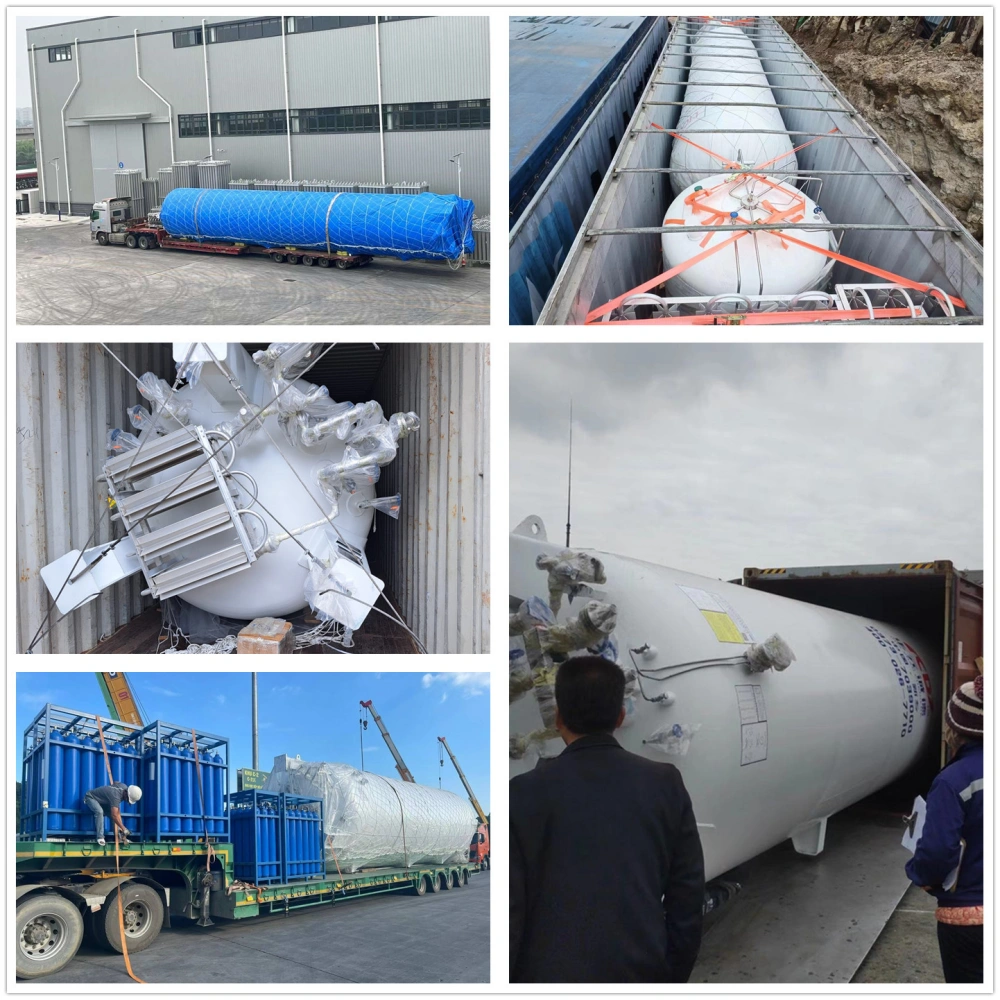

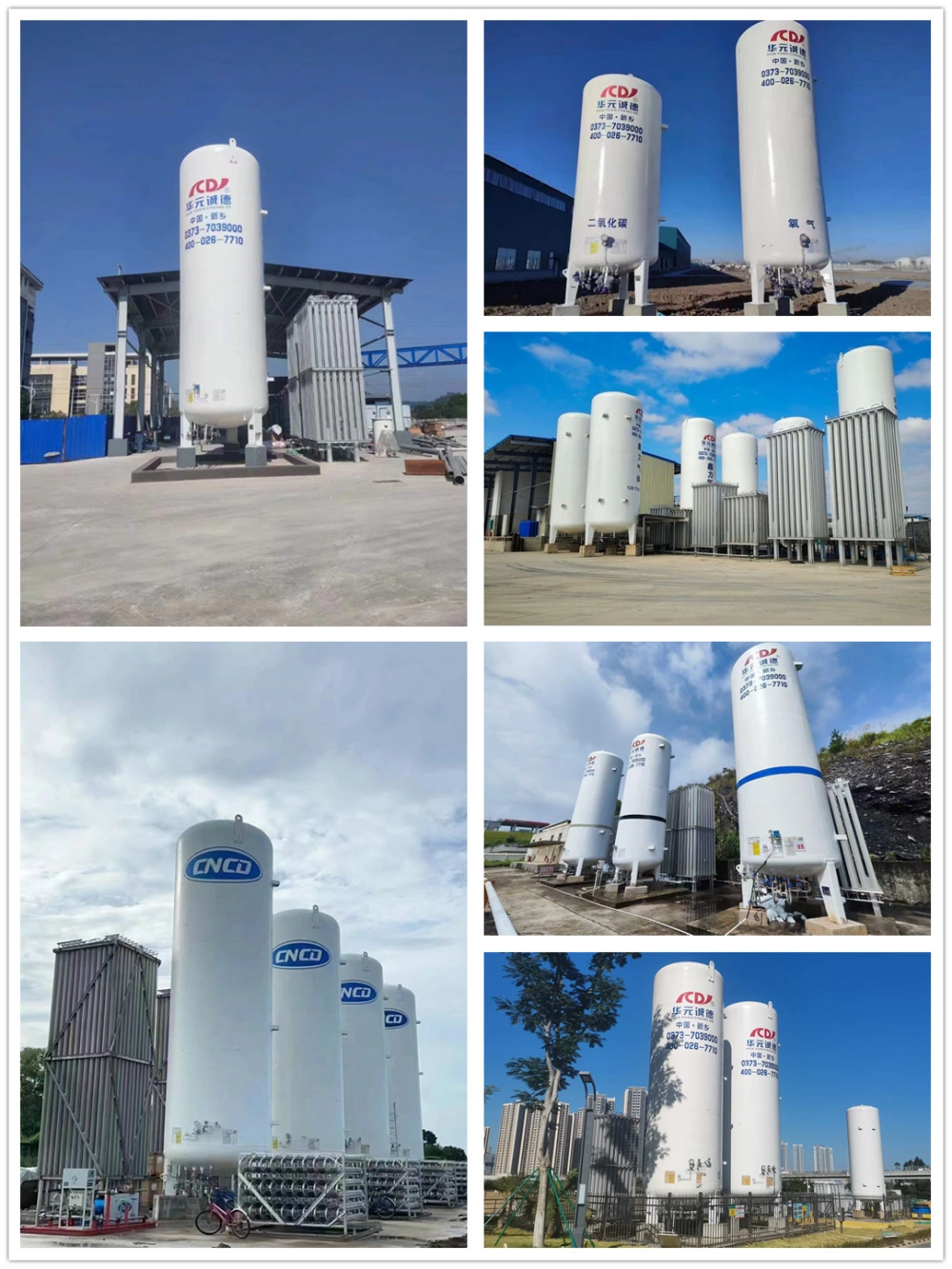

Project SitesPacking & Delivery

1.5cbm Cryogenic Liquid Co2 Tank Can Be Packed Into One 20GP

2.10cbm And 20cbm Liquid Co2 Storage Tank Can Be Packed Into One 40HQ

3.More Than 20m3 Co2 Tank Can Be Packed In Frame Reinforcement Or Bulk Ship.

FAQ

1. Can you provide installation and debugging services?

According to your requirements, we can provide you with:

(1) On-site installation and construction services;

(2) On-site technical engineer guidance service;

(3) Online technical guidance service. And we provide you with the “installation, debugging and operation instructions” and other graphic materials and related video and audio materials shipped with the equipment.Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance materials to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.

2. How about the delivery time?

Usually we need about 45-60 work days produce time. 15 days after receiving the full payment.

3.Do you accept product customization?

Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have a professional design engineer to provide you with customized design services.

4. What is the service life of your product?

Designed service life of 20 years;It can be extended according to the actual use situation. Some of our customers have used it for 30 years.

5. Can I put my logo on the product?

We support product painting color and logo customization.Please provide a vector picture or HD picture of LOGO.
